8Ft Height Flat Panels 656 Welded Mesh Fencing

Product Categories
Anping Guoxing WireMesh Products Co. LTD
Contact Now

8Ft Height Flat Panels 656 Welded Mesh Fencing

  • 1
  • 2

Brand Name : GuoXing

Model Number : GX-Series

Certification : CE

Place of Origin : China Anping

MOQ : 50Sets

Price : by inquiry

Supply Ability : 2000 Sets/15 Days

Delivery Time : within 15 days

Packaging Details : According to your requirement

Hole Shape : Square,Rectangle,long Hole

Feature : Easily Assembled

Wire diameter : 3.00-5.00mm

Wire Gauge : 0.5mm-14mm,2.0-4.0mm,BWG#12--#26,0.3-2.5mm,0.3mm-8.0mm

Application : Construction Wire Mesh,Fence Mesh,building,bridge,garden Fence

Frame Finishing : Powder Coated

Usage : Protection,building,construction

Type : Welded Mesh,Electric Wire Mesh,Panel Or Roll

Contact Now

Security Essenstial 656/868 Twin Wire Mesh Fence System Available, 8Ft Height Flat Panels

Twin wire mesh fencing Details

Twin Wire Mesh is a robust, easy to install fencing system offering an aesthetically pleasing low maintenance solution. The combination of height, strength and appearance makes these ideal fences for a wide range of applications from commercial, industrial and educational to sport and recreational grounds.

8Ft Height Flat Panels 656 Welded Mesh Fencing

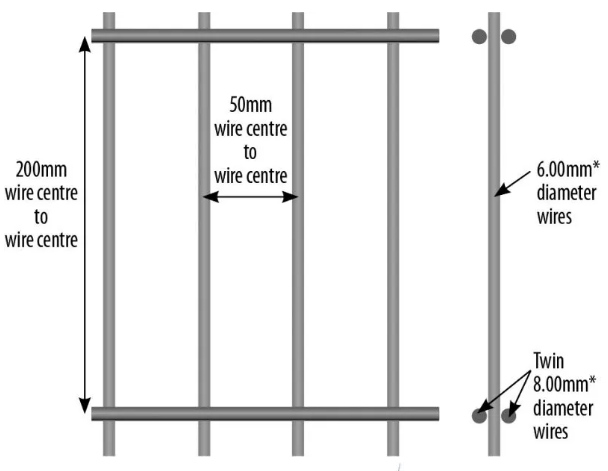

The 2D flat panels are made from heavy welded mesh, panels are 2500mm wide with heights up to 2430mm. The panels are rigid due to the double horizontal wires. The panels have vertical barbs of 30mm height at one side, which can be installed at the top or at the bottom of the fence. The standard mesh: 200 x 50mm, wire diameter: horizontal: 2 x 6mm and vertical: 5mm.

2D Panels Parameters

HeightxWidth

(mm)

MeshSize

(mm)

 WireDiameter

PostHeight

|(mm)

WireDia

(mm)

WireDia

(mm)

WireDia

(mm)
630X2500 50X200 8X2+6 6X2+5 6X2+4 1100
830X2500 50X200 8X2+6 6X2+5 6X2+4 1300
1030X2500 50X200 8X2+6 6X2+5 6X2+4 1500
1230X2500 50X200 8X2+6 6X2+5 6X2+4 1700
1430X2500 50X200 8X2+6 6X2+5 6X2+4 1900
1630X2500 50X200 8X2+6 6X2+5 6X2+4 2100
1830X2500 50X200 8X2+6 6X2+5 6X2+4 2400
2030X2500 50X200 8X2+6 6X2+5 6X2+4 2600
2230X2500 50X200 8X2+6 6X2+5 6X2+4 2800
2430X2500 50X200 8X2+6 6X2+5 6X2+4 3000

2D panels is standard available in green RAL 6005. Black RAL 9005 and other colours are available on request.


Post Paremeters


1) Square Post (50*50mm, 60*60mm)
2) Rectangular Post (80*60*2.5mm, 120*60*3mm)
3) Peach post(70*100mm)
4) All the posts are provided with plastic caps or Roofing rainhat.
5) The finished surface usually is Galvanizing and Powder coating or alternatively.

Post Height Post Style
Burying style Bass style
1400mm 1200mm square
peach
round
1600mm 1400mm
2000mm 1700mm
2200mm 1900mm
2300mm 2000mm
2500mm 2200mm

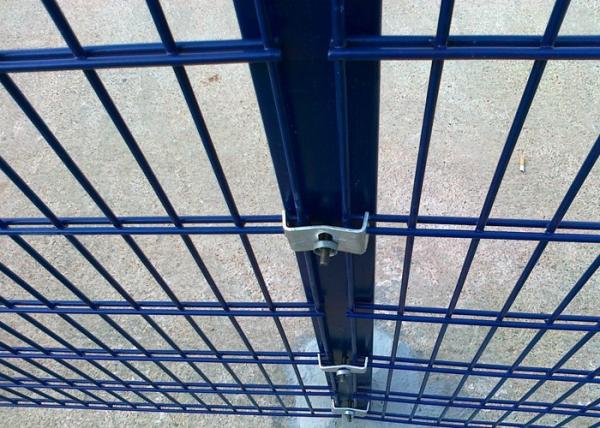

Each steel panel features twin 6mm wires welded either side of 5mm vertical wires (656 Double Wire Mesh), giving would-be intruders little chance of breaking through. It is also available as a 868 Twin Wire Panel option. Panels are fixed to steel posts using sturdy clamps and secured with pin hex security screws, with no visible fixings on the back of posts.

Twin wire mesh fencing Applications

Industrial estates, retail parks, industrial buildings, schools and playgrounds.

8Ft Height Flat Panels 656 Welded Mesh Fencing

Processing procedure

Straightening and cutting short - Welding - Galvanized - Powder coated - Packaging - Shipping


8Ft Height Flat Panels 656 Welded Mesh Fencing

Packing:


1.)Packing with Plastic Film and metal packing metal belt.
2.)Packing with carton;wooden case;pallet.
3.)According to customers requirement.

Workshop&Packing:

8Ft Height Flat Panels 656 Welded Mesh Fencing 8Ft Height Flat Panels 656 Welded Mesh Fencing
