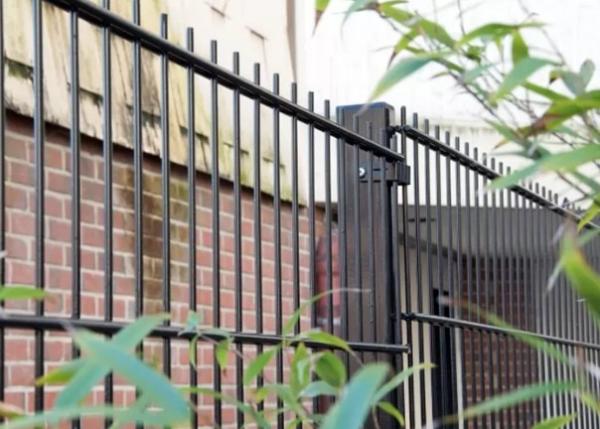

50mm X 100mm 2D Panels 1100MM Welded Mesh Fencing

Product Categories

Anping Guoxing WireMesh Products Co. LTD

Contact Now

50mm X 100mm 2D Panels 1100MM Welded Mesh Fencing

Name: 50mm X 100mm 2D Panels 1100MM Welded Mesh Fencing
Brand: GuoXing
Price: 1 USD

50mm X 100mm 2D Panels 1100MM Welded Mesh Fencing Manufactures

Brand Name : GuoXing

Model Number : GX-Series

Certification : CE

Place of Origin : China Anping

MOQ : 50Sets

Price : by inquiry

Supply Ability : 2000 Sets/15 Days

Delivery Time : within 15 days

Packaging Details : According to your requirement

Hole Shape : Square,Rectangle,long Hole

Feature : Easily Assembled

Wire diameter : 3.00-5.00mm

Wire Gauge : 0.5mm-14mm,2.0-4.0mm,BWG#12--#26,0.3-2.5mm,0.3mm-8.0mm

Application : Construction Wire Mesh,Fence Mesh,building,bridge,garden Fence

Frame Finishing : Powder Coated

Usage : Protection,building,construction

Type : Welded Mesh,Electric Wire Mesh,Panel Or Roll

Contact Now

50mm X 100mm Welded Wire Fabric Power Coated RAL 6005 Nylofor 2D Panels

Twin wire mesh fencing Details

Twin wire mesh fencing is considered to be one of the best solutions for those that need a high security fence that is less dangerous to children and young people than other types of security fencing such as palisade. The mesh is made up of 5mm vertical steel wires which are then pressed between two 6mm horizontal wires that run parallel to each other, it comes pre-galvanised and powder coated as standard with the most popular colour being green. This being said we can provide twin wire mesh fencing in any of the standard RAL colours to make sure that your fence suits the surrounding environment. Please note however that ordering some of the not so popular colours may result in the league time of your fence being increased by a few days.

2D Panels Parameters

HeightxWidth (mm)	MeshSize (mm)	WireDiameter			PostHeight \|(mm)
HeightxWidth (mm)	MeshSize (mm)	WireDia (mm)	WireDia (mm)	WireDia (mm)	PostHeight \|(mm)
630X2500	50X200	8X2+6	6X2+5	6X2+4	1100
830X2500	50X200	8X2+6	6X2+5	6X2+4	1300
1030X2500	50X200	8X2+6	6X2+5	6X2+4	1500
1230X2500	50X200	8X2+6	6X2+5	6X2+4	1700
1430X2500	50X200	8X2+6	6X2+5	6X2+4	1900
1630X2500	50X200	8X2+6	6X2+5	6X2+4	2100
1830X2500	50X200	8X2+6	6X2+5	6X2+4	2400
2030X2500	50X200	8X2+6	6X2+5	6X2+4	2600
2230X2500	50X200	8X2+6	6X2+5	6X2+4	2800
2430X2500	50X200	8X2+6	6X2+5	6X2+4	3000

Twin wire mesh fencing advantages

Rigidity - The 2D panels are rigid due to the use of heavy welded mesh in conjunction with double horizontal twin wires.
High longevity - The coating technology guarantees an extra high longevity. After galvanising an adhesion coating is applied for a perfect bond with the polyester coating of 100 micron to 120 micron.
Complete system - The Nylofor 2D system includes panels in different mesh apertures and heights, posts with adapted fixation systems and a large range of mesh and gates. All components guarantee a fast and professional installation.

Post Paremeters:

Post Height		Post Style
Burying style	Bass style	Post Style
1400mm	1200mm	square peach round
1600mm	1400mm
2000mm	1700mm
2200mm	1900mm
2300mm	2000mm
2500mm	2200mm

Processing procedure

Straightening and cutting short - Welding - Galvanized - Powder coated - Packaging - Shipping

50mm X 100mm 2D Panels 1100MM Welded Mesh Fencing

Packing:

1.)Packing with Plastic Film and metal packing metal belt.
2.)Packing with carton;wooden case;pallet.
3.)According to customers requirement.

Workshop&Packing:

50mm X 100mm 2D Panels 1100MM Welded Mesh Fencing
